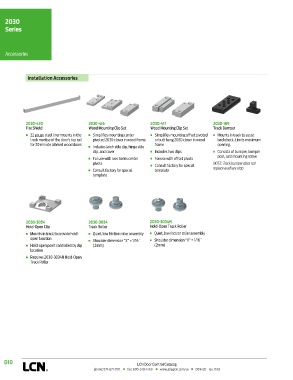

2030
Series

Accessories

Installation Accessories

2030-420 2030-416 2030-417 2030-169
Fire Shield Wood Mounting Clip Set Wood Mounting Clip Set Track Bumper
n 22 gauge steel liner mounts in the n Simplifies mounting center n Simplifies mounting offset pivoted n Mounts in track to assist
track mortise of the door’s top rail pivoted 2030 closer in wood frame or butt hung 2030 closer in wood backcheck. Limits maximum
for 20 minute labeled wood doors frame opening.
n Includes latch stile clip, hinge stile
clip, and cover n Includes two clips n Consists of bumper, bumper
n For use with Ives Series center n For use with offset pivots post, and mounting screw
pivots NOTE: Track bumper does not
n Consult factory for special
n Consult factory for special template replace auxiliary stop
template

2030-3054 2030-3034 2030-3034H
Hold-Open Clip Track Roller Hold-Open Track Roller
n Mounts in track to provide hold- n Quiet, low friction roller assembly n Quiet, low friction roller assembly
open function
n Shoulder dimension “X” = 1/16˝ n Shoulder dimension “X” = 1/16˝
n Hold-open point controlled by clip (2mm) (2mm)
location
n Requires 2030-3034H Hold-Open
Track Roller

D10 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
