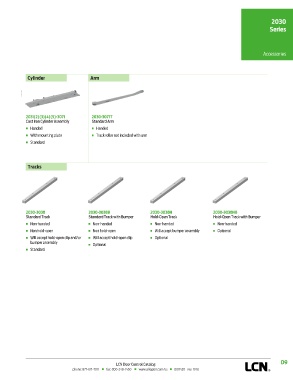

2030
Series

Accessories

Cylinders Arm
Cylinder

2031(2)(3)(4)(5)-3071 2030-3077T
Cast Iron Cylinder Assembly Standard Arm
n Handed n Handed
n With mounting plate n Track roller not included with arm
n Standard

Tracks
Cylinders

2030-3038 2030-3038B 2030-3038H 2030-3038HB
Standard Track Standard Track with Bumper Hold-Open Track Hold-Open Track with Bumper
n Non-handed n Non-handed n Non-handed n Non-handed
n Non hold-open n Non hold-open n Will accept bumper assembly n Optional
n Will accept hold-open clip and/or n Will accept hold-open clip n Optional
bumper assembly
n Optional
n Standard

D9
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
