2010
Series

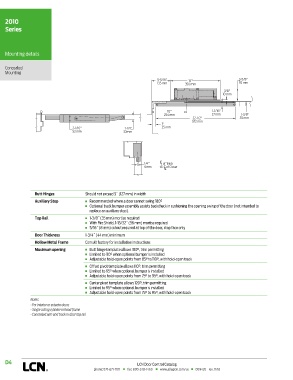

Mounting details

Concealed
Mounting
5-5/16" 14" 3-5/8"
135 mm 356 mm 92 mm
3/8"
10 mm

10" 1-1/16"
254 mm 27 mm 1-3/8"
22-1/2" 35 mm
572 mm
1"
2-1/16" 1-1/4" 25 mm
52 mm 32mm

1/4" of Track
6mm to of Closer

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop n Recommended where a door cannot swing 180°
n Optional track bumper assembly assists backcheck in cushioning the opening swing of the door (not intended to
replace an auxiliary stop).
Top Rail n 1-3/8˝ (35 mm) mortise required
n With Fire Shield, 1-13/32˝ (36 mm) mortise required
n 5/16˝ (8 mm) cutout required at top of the door, stop face only
Door Thickness 1-3/4˝ (44 mm) minimum
Hollow Metal Frame Consult factory for installation instructions
Maximum opening n Butt hinge template allows 180°, trim permitting
n Limited to 110° when optional bumper is installed
n Adjustable hold-open points from 85° to 110°, with hold-open track
n Offset pivot template allows 110°, trim permitting
n Limited to 95° when optional bumper is installed
n Adjustable hold-open points from 75° to 95°, with hold-open track
n Center pivot template allows 120°, trim permitting
n Limited to 95° when optional bumper is installed
n Adjustable hold-open points from 75° to 95°, with hold-open track
Notes:
• For interior or exterior doors
• Single acting cylinder in head frame
• Concealed arm and track in door top rail
