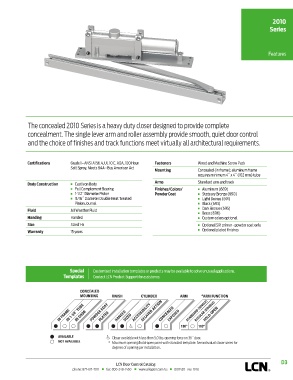

2010
Series

Features

The concealed 2010 Series is a heavy duty closer designed to provide complete
concealment. The single lever arm and roller assembly provide smooth, quiet door control
and the choice of finishes and track functions meet virtually all architectural requirements.

Certifications Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Fasteners Wood and Machine Screw Pack
Salt Spray, Meets BAA - Buy American Act
Mounting Concealed (in frame); aluminum frame
requires minimum 4˝ x 4˝ (102 mm) tube
Body Construction n Cast Iron Body Arms Standard arm and track
n Full Complement Bearing Finishes/Colors/ n Aluminum (689)
n 1-1/2˝ Diameter Piston Powder Coat n Statuary Bronze (690)
n 11/16˝ Diameter Double Heat Treated n Light Bronze (691)
Pinion Journal n Black (693)
n Dark Bronze (695)
Fluid All Weather Fluid
n Brass (696)
Handing Handed n Custom colors optional
Size Sized 1-6 n Optional SRI primer - powder coat only
n Optional plated finishes
Warranty 15 years

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

CONCEALED
MOUNTING FINISH CYLINDER ARM *ARM FUNCTION
DELAYED ACTION
REGULAR (DOUBLE)
IN FRAME IN 1-3/4˝ TUBE POWDER COAT HANDED SIZED ACCESSIBILITY CONCEALED STANDARD (SINGLE) HOLD-OPEN
EXPOSED
IN DOOR
PLATED
180° 110°

AVAILABLE Closer available with less than 5.0 lbs. opening force on 36˝ door.
NOT AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for
degrees of opening per installation.

D3
