2010
Series

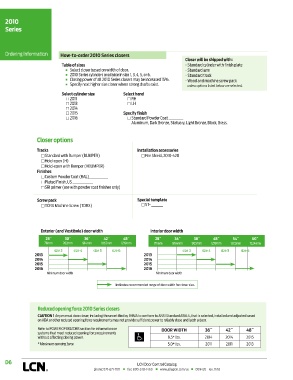

Ordering Information How-to-order 2010 Series closers
Closer will be shipped with:
Table of sizes - Standard cylinder with finish plate
n Select closer based on width of door. - Standard arm
n 2010 Series cylinders available in size 1, 3, 4, 5, or 6. - Standard track
n Closing power of all 2010 Series closers may be increased 15%. - Wood and machine screw pack
n Specify next higher size closer where strong drafts exist. unless options listed below are selected.

Select cylinder size Select hand
2011 RH
2013 LH
2014
2015 Specify finish
2016 Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass.

Closer options
Tracks Installation accessories
Standard with Bumper (BUMPER) Fire Shield, 2010-420
Hold-open (H)
Hold-open with Bumper (HBUMPER)
Finishes
Custom Powder Coat (RAL)_____________
Plated Finish, US ______________
SRI primer (use with powder coat finishes only)

Screw pack Special template
TORX Machine Screw (TORX) ST- ________

Exterior (and Vestibule) door width Interior door width
28˝ 30˝ 36˝ 42˝ 48˝ 28˝ 34˝ 38˝ 48˝ 54˝ 60˝
711mm 762mm 914mm 1067mm 1219mm 711mm 864mm 965mm 1219mm 1372mm 1524mm
size 3 size 4 size 5 size 6 size 3 size 4 size 5 size 6
2013 2013
2014 2014
2015 2015
2016 2016
Minimum door width Minimum door width

Indicates recommended range of door width for closer size.

Reduced opening force 2010 Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements
without affecting closing power. 8.5* lbs. 2014 2014 2015
* Maximum opening force. 5.0* lbs. 2011 2011 2013

D6 LCN Door Control Catalog
