2030
Series

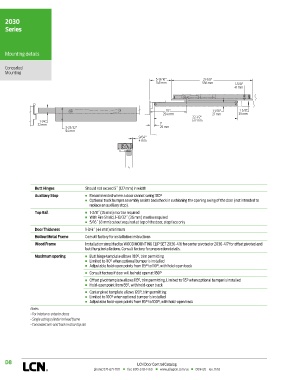

Mounting details

Concealed
Mounting
5-13/16" 21-7/8"
148 mm 556 mm 1-5/8"
41 mm

10" 1-1/16" 1-3/8"
254 mm 27 mm 35 mm
22-1/2"
1-1/4" 572 mm
32 mm 1"
3-23/32" 25 mm
94 mm
9/64"
4 mm

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop n Recommended where a door cannot swing 180°
n Optional track bumper assembly assists backcheck in cushioning the opening swing of the door (not intended to
replace an auxiliary stop).
Top Rail n 1-3/8˝ (35 mm) mortise required
n With Fire Shield, 1-13/32˝ (36 mm) mortise required
n 5/16˝ (8 mm) cutout required at top of the door, stop face only
Door Thickness 1-3/4˝ (44 mm) minimum
Hollow Metal Frame Consult factory for installation instructions
Wood Frame Installation simplified by WOOD MOUNTING CLIP SET 2030-416 for center pivoted or 2030-417 for offset pivoted and
butt hung installations. Consult factory for preparation details.
Maximum opening n Butt hinge template allows 180°, trim permitting
n Limited to 110° when optional bumper is installed
n Adjustable hold-open points from 85° to 110°, with hold-open track
n Consult factory if door will be held open at 180°
n Offset pivot template allows 115°, trim permitting. Limited to 95° when optional bumper is installed
n Hold-open point from 85°, with hold-open track
n Center pivot template allows 120°, trim permitting
n Limited to 100° when optional bumper is installed
n Adjustable hold-open points from 85° to 100°, with hold-open track
Notes:
• For interior or exterior doors
• Single acting cylinder in head frame
• Concealed arm and track in door top rail

D8 LCN Door Control Catalog
