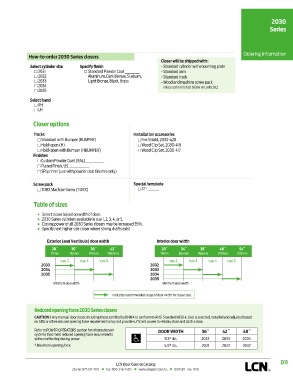

Ordering Information
How-to-order 2030 Series closers
Closer will be shipped with:
Select cylinder size Specify finish - Standard cylinder with mounting plate
2031 Standard Powder Coat __________ - Standard arm
2032 Aluminum, Dark Bronze, Statuary, - Standard track
2033 Light Bronze, Black, Brass - Wood and machine screw pack
2034 unless options listed below are selected.
2035
Select hand
RH
LH

Closer options

Tracks Installation accessories
Standard with Bumper (BUMPER) Fire Shield, 2030-420
Hold-open (H) Wood Clip Set, 2030-416
Hold-open with Bumper (HBUMPER) Wood Clip Set, 2030-417
Finishes
Custom Powder Coat (RAL)_____________
Plated Finish, US ______________
SRI primer (use with powder coat finishes only)

Screw pack Special template
TORX Machine Screw (TORX) ST- ________

Table of sizes

n Select closer based on width of door.
n 2030 Series cylinders available in size 1, 2, 3, 4, or 5.
n Closing power of all 2030 Series closers may be increased 35%.
n Specify next higher size closer where strong drafts exist

Exterior (and Vestibule) door width Interior door width
28˝ 30˝ 36˝ 42˝ 28˝ 34˝ 38˝ 48˝ 54˝
711mm 762mm 914mm 1067mm 711mm 864mm 965mm 1219mm 1372mm
size 3 size 4 size 5 size 2 size 3 size 4 size 5
2033 2032
2034 2033
2035 2034
2035
Minimum door width Minimum door width

Indicates recommended range of door width for closer size.

Reduced opening force 2030 Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements
without affecting closing power. 8.5* lbs. 2033 2033 2034
* Maximum opening force. 5.0* lbs. 2031 2032 2032
