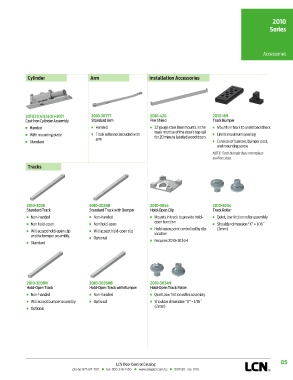

Page 167 - Herrajes Patricios - Catalogo LCN

2010
Series

Accessories

Cylinder Arm Installation Accessories
Cylinders

2011(3)(4)(5)(6)-3071 2010-3077T 2010-420 2010-169
Cast Iron Cylinder Assembly Standard Arm Fire Shield Track Bumper
n Handed n Handed n 22 gauge steel liner mounts in the n Mounts in track to assist backcheck
track mortise of the door’s top rail
n With mounting plate n Track roller not included with for 20 minute labeled wood doors n Limits maximum opening
arm
n Standard n Consists of bumper, bumper post,
and mounting screw
NOTE: Track bumper does not replace
auxiliary stop.

Tracks

2010-3038 2010-3038B 2010-3054 2010-3034
Standard Track Standard Track with Bumper Hold-Open Clip Track Roller
n Non-handed n Non-handed n Mounts in track to provide hold- n Quiet, low friction roller assembly
open function
n Non hold-open n Non hold-open n Shoulder dimension “X” = 1/16˝
n Hold-open point controlled by clip (2mm)
n Will accept hold-open clip n Will accept hold-open clip
and/or bumper assembly. location
n Optional
n Standard n Requires 2010-3034H

2010-3038H 2010-3038HB 2010-3034H
Hold-Open Track Hold-Open Track with Bumper Hold-Open Track Roller
n Non-handed n Non-handed n Quiet, low friction roller assembly
n Will accept bumper assembly n Optional n Shoulder dimension “X” = 1/16˝
(2mm)
n Optional

D5
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
