Concealed
closer series

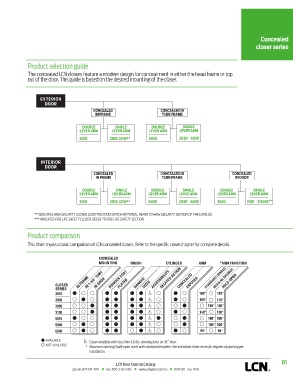

Product selection guide
The concealed LCN closers feature a modern design for concealment in either the head frame or top
rail of the door. This guide is based on the desired mounting of the closer.

EXTERIOR
DOOR
CONCEALED CONCEALED IN
IN FRAME TUBE FRAME

DOUBLE SINGLE DOUBLE SINGLE
LEVER ARM LEVER ARM LEVER ARM LEVER ARM

5010 2010 2210** 5030 2030 6030

INTERIOR
DOOR
CONCEALED CONCEALED IN CONCEALED
IN FRAME TUBE FRAME IN DOOR

DOUBLE SINGLE DOUBLE SINGLE DOUBLE SINGLE
LEVER ARM LEVER ARM LEVER ARM LEVER ARM LEVER ARM LEVER ARM

5010 2010 2210** 5030 2030 6030 3030 3130 3130SE ***

** INDICATES HIGH SECURITY CLOSER, DOOR POSITION SWITCH OPTIONAL. REFER TO HIGH SECURITY SECTION OF THE CATALOG.
*** INDICATES FIRE LIFE SAFETY CLOSER. REFER TO FIRE LIFE SAFETY SECTION.

Product comparison

This chart shows a basic comparison of LCN concealed closers. Refer to the specific closer chapter for complete details.

CONCEALED
MOUNTING FINISH CYLINDER ARM *ARM FUNCTION
DELAYED ACTION
REGULAR (DOUBLE)
IN FRAME IN 1-3/4˝ TUBE POWDER COAT HANDED ACCESSIBILITY CONCEALED STANDARD (SINGLE) HOLD-OPEN
EXPOSED
IN DOOR
CLOSER PLATED SIZED
SERIES
2010 180° 110°
2030 180° 110°
3030 180° 140°
3130 140° 100°
5010 180° 100°
5030 180° 100°
6030 95° 95°
AVAILABLE Closer available with less than 5.0 lbs. opening force on 36˝ door.
NOT AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for degrees of opening per
installation.
