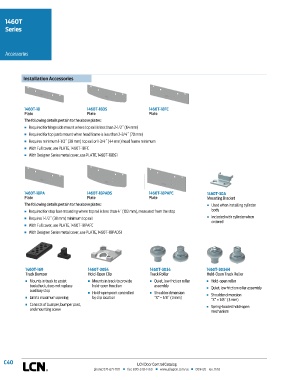

1460T
Series

Accessories

Installation Accessories

1460T-18 1460T-18DS 1460T-18FC
Plate Plate Plate
The following details pertain to the above plates:
n Required for hinge side mount where top rail is less than 2-1/2˝ (64 mm)
n Required for top jamb mount when head frame is less than 2-3/4˝ (70 mm)
n Requires minimum 1-1/2˝ (38 mm) top rail or 1-3/4˝ (44 mm) head frame minimum
n With Full cover, use PLATE, 1460T-18FC
n With Designer Series metal cover, use PLATE, 1460T-18DS1

1460T-18PA 1460T-18PADS 1460T-18PAFC 1460T-30A
Plate Plate Plate Mounting Bracket
The following details pertain to the above plates: n Used when installing cylinder
n Required for stop face mounting where top rail is less than 4˝ (102 mm), measured from the stop body
n Requires 1-1/2˝ (38 mm) minimum top rail n Included with cylinder when
ordered
n With Full cover, use PLATE, 1460T-18PAFC
n With Designer Series metal cover, use PLATE, 1460T-18PADS1

1460T-169 1460T-3054 1460T-3034 1460T-3034H
Track Bumper Hold-Open Clip Track Roller Hold-Open Track Roller
n Mounts in track to assist n Mounts in track to provide n Quiet, low friction roller n Hold-open roller
backcheck, does not replace hold-open function assembly n Quiet, low friction roller assembly
auxiliary stop n Hold-open point controlled n Shoulder dimension
n Limits maximum opening by clip location “X” = 1/8˝ (3 mm) n Shoulder dimension
“X” = 1/8˝ (3 mm)
n Consists of bumper, bumper post, n Spring-loaded hold-open
and mounting screw mechanism

C40 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
