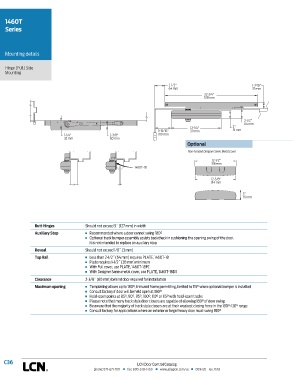

Page 156 - Herrajes Patricios - Catalogo LCN

1460T
Series

Mounting details

Hinge (Pull) Side
Mounting

2-1/2" 1-7/16"
64 mm 37 mm
22-3/4"
578 mm

2-1/2"
64 mm
12-1/4" 2"
3-15/16" 311 mm 51 mm
1-1/4" 2-3/8" 100 mm
32 mm 60 mm
Optional
Non-handed Designer Series Metal Cover
12-1/2"
318 mm
1460T-18

12-3/8"
314 mm

3"
76 mm

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop n Recommended where a door cannot swing 180°
n Optional track bumper assembly assists backcheck in cushioning the opening swing of the door.
It is not intended to replace an auxiliary stop
Reveal Should not exceed 1/8˝ (3 mm)
Top Rail n Less than 2-1/2˝ (64 mm) requires PLATE, 1460T-18
n Plate requires 1-1/2˝ (38 mm) minimum
n With Full cover, use PLATE, 1460T-18FC
n With Designer Series metal cover, use PLATE, 1460T-18DS
Clearance 2-3/8˝ (60 mm) behind door required for installation
Maximum opening n Templating allows up to 180°, trim and frame permitting, limited to 115° when optional bumper is installed
n Consult factory if door will be held open at 180°
n Hold-open points at 85°, 90°, 95°, 100°, 110° or 115° with hold-open tracks
n Please note that many track style door closers are capable of allowing 180° of door swing
n Be aware that the majority of track style closers are at their weakest closing force in the 180°-130° range
n Consult factory for applications where an exterior or large/heavy door must swing 180°

C36 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
