1460
Series

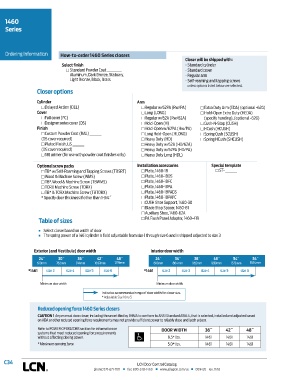

Ordering Information How-to-order 1460 Series closers
Closer will be shipped with:
Select finish - Standard cylinder
Standard Powder Coat __________ - Standard cover
Aluminum, Dark Bronze, Statuary, - Regular arm
Light Bronze, Black, Brass - Self-reaming and tapping screws
unless options listed below are selected.
Closer options

Cylinder Arm
Delayed Action (DEL) Regular w/62PA (Rw/PA) Extra Duty Arm (EDA) (optional -62G)
Cover Long (LONG) Hold-Open Extra Duty (HEDA)
Full cover (FC) Regular w/62A (Rw/62A) (specify handing), (optional -62G)
Designer series cover (DS) Hold-Open (H) Cush-N-Stop (CUSH)
Finish Hold-Open w/62PA (Hw/PA) HCush (HCUSH)
Custom Powder Coat (RAL) ________ Long Hold-Open (HLONG) Spring Cush (SCUSH)
(DS cover required) Heavy Duty (HD) Spring HCush (SHCUSH)
Plated Finish, US ________ Heavy Duty w/62A (HD/62A)
(DS cover required) Heavy Duty w/62PA (HD/PA)
SRI primer (for use with powder coat finishes only) Heavy Duty Long (HDL)
Optional screw packs Installation accessories Special template
TB* w/Self-Reaming and Tapping Screws (TBSRT) Plate, 1460-18 ST- ________
Wood & Machine Screw (WMS) Plate, 1460-18DS
TB*, Wood & Machine Screw (TBWMS) Plate, 1460-18FC
TORX Machine Screw (TORX) Plate, 1460-18PA
TB* & TORX Machine Screw (TBTORX) Plate, 1460-18PADS
* Specify door thickness if other than 1-3/4˝ Plate, 1460-18PAFC
CUSH Shoe Support, 1460-30
Blade Stop Spacer, 1460-61
Auxiliary Shoe, 1460-62A
Table of sizes PA Flush Panel Adapter, 1460-419

n Select closer based on width of door
n The spring power of a 1461 cylinder is field adjustable from size 1 through size 6 and is shipped adjusted to size 3

Exterior (and Vestibule) door width Interior door width
24˝ 30˝ 36˝ 42˝ 48˝ 24˝ 34˝ 38˝ 48˝ 54˝ 54˝
610mm 762mm 914mm 1067mm 1219mm 610mm 864mm 965mm 1219mm 1372mm 1524mm
*1461 size 3 size 4 size 5 size 6 *1461 size 2 size 3 size 4 size 5 size 6

Minimum door width Minimum door width

Indicates recommended range of door width for closer size.
* Adjustable Size 1 thru 5.

Reduced opening force 1460 Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements
without affecting closing power. 8.5* lbs. 1461 1461 1461
* Maximum opening force. 5.0* lbs. 1461 1461 1461

C34 LCN Door Control Catalog
