1460
Series

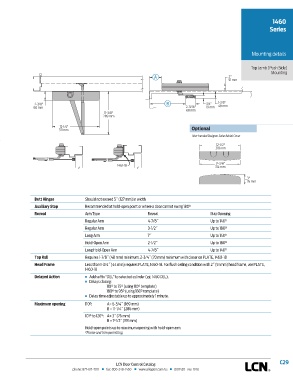

Mounting details

Top Jamb (Push Side)
Mounting
A 2"
51 mm

2-3/8" B 3/4" 1-7/8"
48 mm
60 mm 2-11/16" 19 mm
68 mm
11-3/8"
289 mm
12-1/4" Optional
311 mm
Non-handed Designer Series Metal Cover
12-1/2"
318 mm

12-3/8"
1461-18 314 mm

3"
76 mm

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Arm Type Reveal Max Opening
Regular Arm 4-7/8˝ Up to 140°
Regular Arm 3-1/2˝ Up to 180°
Long Arm 7˝ Up to 140°
Hold-Open Arm 2-1/2˝ Up to 180°
Long Hold-Open Arm 4-7/8˝ Up to 140°
Top Rail Requires 1-7/8˝ (48 mm) minimum. 2-3/4˝ (70 mm) minimum with closer on PLATE, 1460-18
Head Frame Less than 1-3/4˝ (44 mm) requires PLATE, 1460-18. For flush ceiling condition with 2˝ (51 mm) head frame, use PLATE,
1460-18
Delayed Action n Add suffix “DEL” to selected cylinder (eg. 1460 DEL).
n Delays closing:
110° to 75° (using 110° template)
180° to 95° (using 180° template)
n Delay time adjustable up to approximately 1 minute.
Maximum opening 110°: A= 6-3/4˝ (169 mm)
B = 11-1/4˝ (286 mm)
101° to 120°: A= 3˝ (76 mm)
B = 7-1/2˝ (191 mm)
Hold-open points up to maximum opening with hold-open arm.
*Frame and trim permitting.
