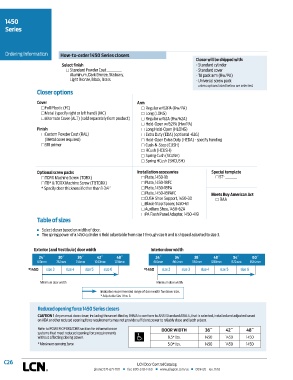

Page 146 - Herrajes Patricios - Catalogo LCN

1450
Series

Ordering Information How-to-order 1450 Series closers
Closer will be shipped with:
Select finish - Standard cylinder
Standard Powder Coat __________ - Standard cover
Aluminum, Dark Bronze, Statuary, - Tri pack arm (Rw/PA)
Light Bronze, Black, Brass - Universal screw pack
unless options listed below are selected.
Closer options

Cover Arm
Full Plastic (FC) Regular w/62PA (Rw/PA)
Metal (specify right or left hand) (MC) Long (LONG)
Alternate Cover (ALT) (sold separately from product) Regular w/62A (Rw/62A)
Hold-Open w/62PA (Hw/PA)
Finish Long Hold-Open (HLONG)
Custom Powder Coat (RAL) Extra Duty (EDA) (optional -62G)
(Metal cover required) Hold-Open Extra Duty (HEDA) - specify handing
SRI primer Cush-N-Stop (CUSH)
HCush (HCUSH)
Spring Cush (SCUSH)
Spring HCush (SHCUSH)

Optional screw packs Installation accessories Special template
TORX Machine Screw (TORX) Plate, 1450-18 ST- ________
TB* & TORX Machine Screw (TBTORX) Plate, 1450-18FC
* Specify door thickness if other than 1-3/4˝ Plate, 1450-18PA
Plate, 1450-18PAFC Meets Buy American Act
CUSH Shoe Support, 1450-30 BAA
Blade Stop Spacer, 1450-61
Auxiliary Shoe, 1450-62A
PA Flush Panel Adapter, 1450-419
Table of sizes

n Select closer based on width of door.
n The spring power of a 1450 cylinder is field adjustable from size 1 through size 6 and is shipped adjusted to size 3.

Exterior (and Vestibule) door width Interior door width
24˝ 30˝ 36˝ 42˝ 48˝ 24˝ 34˝ 38˝ 48˝ 54˝ 60˝
610mm 762mm 914mm 1067mm 1219mm 610mm 864mm 965mm 1219mm 1372mm 1524mm
*1450 size 3 size 4 size 5 size 6 *1450 size 2 size 3 size 4 size 5 size 6

Minimum door width Minimum door width
Indicates recommended range of door width for closer size.
* Adjustable Size 1 thru 6.

Reduced opening force 1450 Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements
without affecting closing power. 8.5* lbs. 1450 1450 1450
* Maximum opening force. 5.0* lbs. 1450 1450 1450
