1450
Series

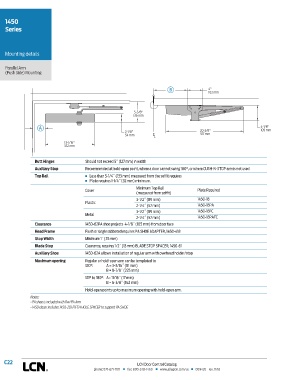

Mounting details

Parallel Arm
(Push Side) Mounting

B 4"
102 mm

5-3/8"
136 mm
A 4-1/8"
2-1/8" 20-3/8" 105 mm
54 mm 517 mm
13-1/16"
332 mm

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point, where a door cannot swing 180°, or where CUSH-N-STOP arm is not used
Top Rail n Less than 5-1/4˝ (133 mm) measured from the soffit requires
n Plate requires 1-1/4˝ (32 mm) minimum.
Minimum Top Rail
Cover Plate Required
(measured from soffit)
3-1/2˝ (89 mm) 1450-18
Plastic
2-1/4˝ (57 mm) 1450-18PA
3-1/2˝ (89 mm) 1450-18FC
Metal
2-1/4˝ (57 mm) 1450-18PAFC
Clearance 1450-62PA shoe projects 4-1/8˝ (105 mm) from door face
Head Frame Flush or single rabbeted requires PA SHOE ADAPTER, 1450-418
Stop Width Minimum 1˝ (25 mm)
Blade Stop Clearance, requires 1/2˝ (13 mm) BLADE STOP SPACER, 1450-61
Auxiliary Shoe 1450-62A allows installation of regular arm with overhead holder/stop
Maximum opening Regular or hold-open arm can be templated to
120°: A = 3-3/16˝ (81 mm)
B = 8-7/8˝ (225 mm)
121° to 180°: A= 11/16˝ (17 mm)
B = 6-3/8˝ (162 mm)
Hold-open points up to maximum opening with hold-open arm.
Notes:
• PA shoe is included with Rw/PA Arm
• 1450 closer includes 1450-201 FIFTH HOLE SPACER to support PA SHOE
