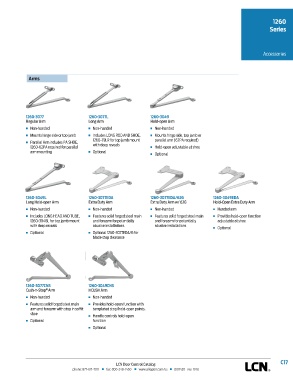

1260
Series

Accessories

Arms

1260-3077 1260-3077L 1260-3049
Regular Arm Long Arm Hold-open Arm
n Non-handed n Non-handed n Non-handed
n Mounts hinge side or top jamb n Includes LONG ROD AND SHOE, n Mounts hinge side, top jamb or
n Parallel Arm includes PA SHOE, 1260-79LR for top jamb mount parallel arm (62PA required)
1260-62PA required for parallel with deep reveals n Hold-open adjustable at shoe
arm mounting n Optional
n Optional

1260-3049L 1260-3077EDA 1260-3077EDA/62G 1260-3049EDA
Long Hold-open Arm Extra Duty Arm Extra Duty Arm w/ 62G Hold-Open Extra Duty Arm
n Non-handed n Non-handed n Non-handed n Handed arm
n Includes LONG HEAD AND TUBE, n Features solid forged steel main n Features solid forged steel main n Provides hold-open function
1260-3048L for top jamb mount and forearm for potentially and forearm for potentially adjustable at shoe
with deep reveals abusive installations abusive installations
n Optional
n Optional n Optional 1260-3077EDA/G for
blade stop clearance

1260-3077CNS 1260-3049CNS
Cush-n-Stop Arm HCUSH Arm
®
n Non-handed n Non-handed
n Features solid forged steel main n Provides hold-open function with
arm and forearm with stop in soffit templated stop/hold-open points.
shoe n Handle controls hold-open
n Optional function
n Optional

C17
