1260
Series

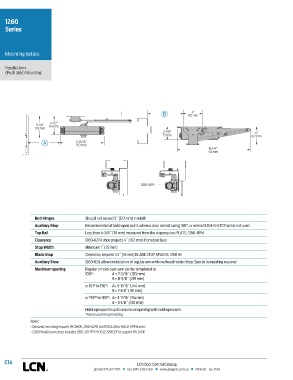

Mounting details

Parallel Arm
(Push Side) Mounting

4"
B 102 mm
4-1/2"
5-1/4" 114 mm
133 mm
2-7/8" 4"
73 mm 102 mm
A 9-15/16"
252 mm
16-1/4"
413 mm

1260-18PA

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point, where a door cannot swing 180°, or where CUSH-N-STOP arm is not used
Top Rail Less than 4-3/8˝ (111 mm) measured from the stop requires PLATE, 1260-18PA
Clearance 1260-62PA shoe projects 4˝ (102 mm) from door face
Stop Width Minimum 1˝ (25 mm)
Blade Stop Clearance, requires 1/2˝ (13 mm) BLADE STOP SPACER, 1260-61
Auxiliary Shoe 1260-62A allows installation of regular arm with overhead holder/stop. Special templating required
Maximum opening Regular or hold-open arm can be templated to
100°: A = 7-3/16˝ (183 mm)
B = 8-5/8˝ (219 mm)
or 101° to 130°: A= 5-11/16˝ (144 mm)
B = 7-1/8˝ (181 mm)
or *131° to 180°: A= 3-11/16˝ (94 mm)
B = 5-1/8˝ (130 mm)
Hold-open points up to maximum opening with hold-open arm.
*Frame and trim permitting.
Notes:
• Optional mounting requires PA SHOE, 1260-62PA for REGULAR or HOLD-OPEN arms
• 1260 Parallel arm closer includes 1260-201 FIFTH HOLE SPACER to support PA SHOE

C14 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
