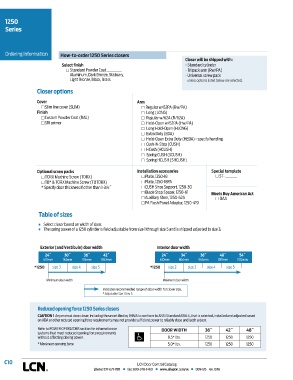

Page 130 - Herrajes Patricios - Catalogo LCN

1250
Series

Ordering Information How-to-order 1250 Series closers
Closer will be shipped with:
Select finish - Standard cylinder
Standard Powder Coat __________ - Tri pack arm (Rw/PA)
Aluminum, Dark Bronze, Statuary, - Universal screw pack
Light Bronze, Black, Brass unless options listed below are selected.

Closer options

Cover Arm
Slim line cover (SLIM) Regular w/62PA (Rw/PA)
Finish Long (LONG)
Custom Powder Coat (RAL) Regular w/62A (R/62A)
SRI primer Hold-Open w/62PA (Hw/PA)
Long Hold-Open (HLONG)
Extra Duty (EDA)
Hold-Open Extra Duty (HEDA) - specify handing
Cush-N-Stop (CUSH)
HCush (HCUSH)
Spring CUSH (SCUSH)
Spring HCUSH (SHCUSH)

Optional screw packs Installation accessories Special template
TORX Machine Screw (TORX) Plate, 1250-18 ST- ________
TB* & TORX Machine Screw (TBTORX) Plate, 1250-18PA
* Specify door thickness if other than 1-3/4˝ CUSH Shoe Support, 1250-30
Blade Stop Spacer, 1250-61 Meets Buy American Act
Auxiliary Shoe, 1250-62A BAA
PA Flush Panel Adapter, 1250-419

Table of sizes

n Select closer based on width of door.
n The spring power of a 1250 cylinder is field adjustable from size 1 through size 5 and is shipped adjusted to size 3.

Exterior (and Vestibule) door width Interior door width
24˝ 30˝ 36˝ 42˝ 24˝ 34˝ 38˝ 48˝ 54˝
610mm 762mm 914mm 1067mm 610mm 864mm 965mm 1219mm 1372mm
*1250 size 3 size 4 size 5 *1250 size 2 size 3 size 4 size 5

Minimum door width Minimum door width

Indicates recommended range of door width for closer size.
* Adjustable Size 1 thru 5.

Reduced opening force 1250 Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements
without affecting closing power. 8.5* lbs. 1250 1250 1250
* Maximum opening force. 5.0* lbs. 1250 1250 1250
