1260
Series

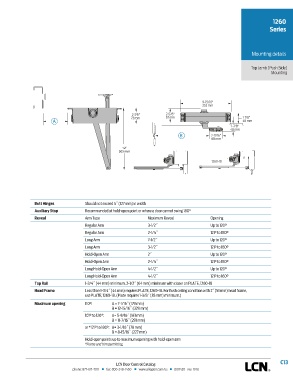

Mounting details

Top Jamb (Push Side)
Mounting

9-15/16"
252 mm
2-7/8" 2-5/8"
73 mm 67 mm 1-7/8"
A 48 mm
1-7/8"
48 mm
B 2-11/16"
68 mm
12"
305 mm

1260-18

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Arm Type Maximum Reveal Opening
Regular Arm 3-1/2˝ Up to 120°
Regular Arm 2-1/4˝ 121° to 180°
Long Arm 7-1/2˝ Up to 120°
Long Arm 3-1/2˝ 121° to 180°
Hold-Open Arm 2˝ Up to 120°
Hold-Open Arm 2-1/4˝ 121° to 180°
Long Hold-Open Arm 4-1/2˝ Up to 120°
Long Hold-Open Arm 4-1/2˝ 121° to 160°
Top Rail 1-3/4˝ (44 mm) minimum. 2-1/2˝ (64 mm) minimum with closer on PLATE, 1260-18
Head Frame Less than 1-3/4˝ (44 mm) requires PLATE, 1260-18. For flush ceiling condition with 2˝ (51 mm) head frame,
use PLATE, 1260-18. (Plate requires 1-3/8˝ (35 mm) minimum.)
Maximum opening 110°: A = 7-1/16˝ (179 mm)
B = 12-15/16˝ (329 mm)
101° to 120°: A= 5-9/16˝ (141 mm)
B = 11-7/16˝ (291 mm)
or *121° to 180°: A= 3-1/16˝ (78 mm)
B = 8-15/16˝ (227 mm)
Hold-open points up to maximum opening with hold-open arm
*Frame and trim permitting.

C13
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
