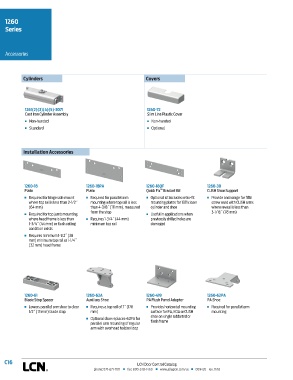

Page 136 - Herrajes Patricios - Catalogo LCN

1260
Series

Accessories

Cylinders Covers

1261(2)(3)(4)(5)-3071 1260-72
Cast Iron Cylinder Assembly Slim Line Plastic Cover
n Non-handed n Non-handed
n Standard n Optional

Installation Accessories

1260-18 1260-18PA 1260-18QF 1260-30
Plate Plate Quick Fix Bracket Kit CUSH Shoe Support
™
n Required for hinge side mount n Required for parallel arm n Optional kit includes retro-fit n Provide anchorage for fifth
where top rail is less than 2-1/2˝ mounting where top rail is less mounting plates for 1371 closer screw used with CUSH arms
(64 mm) than 4-3/8˝ (111 mm), measured cylinder and shoe where reveal is less than
n Required for top jamb mounting from the stop n Useful in applications when 3-1/16˝ (78 mm)
where head frame is less than n Requires 1-3/4˝ (44 mm) previously drilled holes are
1-3/4˝ (44 mm) or flush ceiling minimum top rail damaged
condition exists
n Requires minimum 1-1/2˝ (38
mm) minimum top rail or 1-1/4˝
(32 mm) head frame

1260-61 1260-62A 1260-419 1260-62PA
Blade Stop Spacer Auxiliary Shoe PA Flush Panel Adapter PA Shoe
n Lowers parallel arm shoe to clear n Requires a top rail of 7˝ (178 n Provides horizontal mounting n Required for parallel arm
1/2˝ (13 mm) blade stop mm) surface for PA, EDA or CUSH mounting
shoe on single rabbeted or
n Optional shoe replaces-62PA for flush frame
parallel arm mounting of regular
arm with overhead holder/stop
