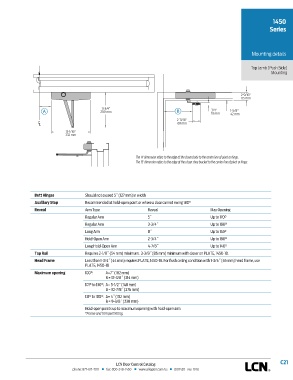

Page 141 - Herrajes Patricios - Catalogo LCN

1450
Series

Mounting details

Top Jamb (Push Side)
Mounting

2-9/16"
65 mm

11-3/4"
A 299 mm B 3/4" 1-5/8"
19 mm
42 mm
2-11/16"
68 mm
13-1/16"
332 mm

The 'A' dimension refers to the edge of the closer body to the center line of pivot or hinge.
The 'B' dimension refers to the edge of the closer shoe bracket to the center line of pivot or hinge.

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Arm Type Reveal Max Opening
Regular Arm 5˝ Up to 170°
Regular Arm 3-3/4˝ Up to 180°
Long Arm 8˝ Up to 155°
Hold-Open Arm 2-3/4˝ Up to 180°
Long Hold-Open Arm 4-7/8˝ Up to 140°
Top Rail Requires 2-1/8˝ (54 mm) minimum. 3-3/8˝ (86 mm) minimum with closer on PLATE, 1450-18.
Head Frame Less than 1-3/4˝ (44 mm) requires PLATE, 1450-18. For flush ceiling condition with 1-3/4˝ (45 mm) head frame, use
PLATE, 1450-18
Maximum opening 100°: A=7˝ (102 mm)
B = 12-3/8˝ (314 mm)
101° to 130°: A= 5-1/2˝ (140 mm)
B = 10-7/8˝ (276 mm)
131° to 180°: A= 4˝ (102 mm)
B = 9-3/8˝ (238 mm)
Hold-open points up to maximum opening with hold-open arm.
*Frame and trim permitting.
