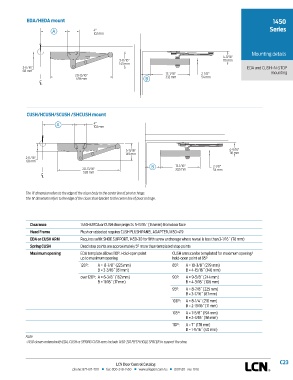

EDA/HEDA mount 1450
A 4" Series
102 mm

Mounting details
4-9/16"
5-11/16" 116 mm
145 mm
2-11/16" EDA and CUSH -N-STOP
68 mm mounting
20-13/16" 13-1/16" 2-1/8"
528 mm B 332 mm 54 mm

CUSH/HCUSH/SCUSH /SHCUSH mount

A 4"
102 mm

5-11/16" 4-9/16"
145 mm 116 mm
2-11/16"
68 mm
B 13-1/16" 2-1/8"
20-13/16" 332 mm 54 mm
528 mm

The 'A' dimension refers to the edge of the closer body to the center line of pivot or hinge.
The 'B' dimension refers to the edge of the closer shoe bracket to the center line of pivot or hinge.

Clearance 1450-62EDA or CUSH shoe projects 5-11/16˝ (144mm) from door face
Head Frame Flush or rabbeted requires CUSH FLUSH PANEL ADAPTER, 1450-419
EDA or CUSH ARM Requires soffit SHOE SUPPORT, 1450-30 for fifth screw anchorage where reveal is less than 3-1/16˝ (78 mm)
Spring CUSH Dead stop points are approximately 5° more than templated stop points
Maximum opening EDA template allows 110°. Hold-open point CUSH arms can be templated for maximum opening/
up to maximum opening hold-open point at 85°
120°: A = 8-7/8˝ (225 mm) 85°: A = 10-3/8˝ (279 mm)
B = 3-3/16˝ (81 mm) B = 4-15/16˝ (140 mm)
over 120°: A = 6-3/8˝ (162 mm) 90°: A = 9-5/8˝ (244 mm)
B = 11/16˝ (17 mm) B = 4-3/16˝ (106 mm)
95°: A = 8-7/8˝ (225 mm)
B = 3-7/16˝ (87 mm)
100°: A = 8-1/4˝ (210 mm)
B = 2-13/16˝ (71 mm)
105°: A = 7-5/8˝ (194 mm)
B = 2-3/16˝ (56 mm)
110°: A = 7˝ (178 mm)
B = 1-9/16˝ (40 mm)
Note:
• 1450 closers ordered with EDA, CUSH or SPRING CUSH arms include 1450-201 FIFTH HOLE SPACER to support the shoe.

C23
