1460
Series

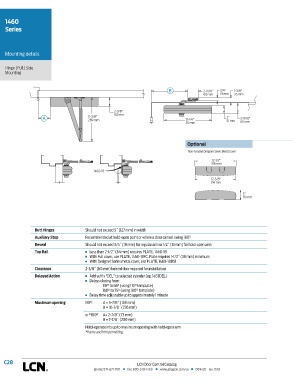

Mounting details

Hinge (Pull) Side
Mounting

B 2-11/16" 3/4" 1-3/8"
68 mm 19 mm 35 mm

2-3/8"
60 mm
A 11-3/8" 12-1/4" 2" 2-9/16"
289 mm
311 mm 51 mm 65 mm

Optional
Non-handed Designer Series Metal Cover
12-1/2"
318 mm
1460-18
12-3/8"
314 mm

3"
76 mm

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Should not exceed 3/4˝ (19 mm) for regular arm or 1/2˝ (13 mm) for hold-open arm
Top Rail n Less than 2-1/2˝ (64 mm) requires PLATE, 1460-18
n With Full cover, use PLATE, 1460-18FC. Plate requires 1-1/2˝ (38 mm) minimum
n With Designer Series metal cover, use PLATE, 1460-18DS1
Clearance 2-3/8˝ (60 mm) behind door required for installation
Delayed Action n Add suffix “DEL” to selected cylinder (eg. 1461 DEL)
n Delays closing from:
110° to 65° (using 110° template)
160° to 75° (using 180° template)
n Delay time adjustable up to approximately 1 minute
Maximum opening 110°: A = 5-7/8˝ (149 mm)
B = 10-7/8˝ (276 mm)
or *180° A= 2-7/8˝ (73 mm)
B = 7-7/8˝ (200 mm)
Hold-open points up to maximum opening with hold-open arm
*Frame and trim permitting.
