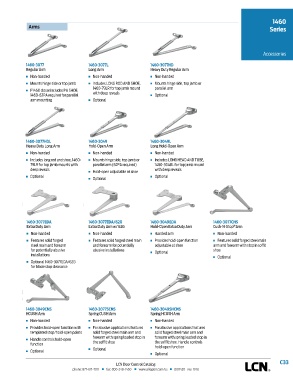

1460
Arms
Series

Accessories

1460-3077 1460-3077L 1460-3077HD
Regular Arm Long Arm Heavy Duty Regular Arm
n Non-handed n Non-handed n Non-handed
n Mounts hinge side or top jamb n Includes LONG ROD AND SHOE, n Mounts hinge side, top jamb or
n P1460 closer includes PA SHOE, 1460-79LR for top jamb mount parallel arm
1460-62PA required for parallel with deep reveals n Optional
arm mounting n Optional

1460-3077HDL 1460-3049 1460-3049L
Heavy Duty Long Arm Hold-Open Arm Long Hold-Open Arm
n Non-handed n Non-handed n Non-handed
n Includes long rod and shoe, 1460- n Mounts hinge side, top jamb or n Includes LONG HEAD AND TUBE,
79LR for top jamb mounts with parallel arm (62PA required) 1460-3048L for top jamb mount
deep reveals with deep reveals
n Hold-open adjustable at shoe
n Optional n Optional
n Optional

1460-3077EDA 1460-3077EDA/62G 1460-3049EDA 1460-3077CNS
®
Extra Duty Arm Extra Duty Arm w/ 62G Hold-Open Extra Duty Arm Cush-N-Stop Arm
n Non-handed n Non-handed n Handed arm n Non-handed
n Features solid forged n Features solid forged steel main n Provides hold-open function n Features solid forged steel main
steel main and forearm and forearm for potentially adjustable at shoe arm and forearm with stop in soffit
for potentially abusive abusive installations n Optional shoe
installations
n Optional
n Optional 1460-3077EDA/62G
for blade stop clearance

1460-3049CNS 1460-3077SCNS 1460-3049SHCNS
HCUSH Arm Spring CUSH Arm Spring HCUSH Arm
n Non-handed n Non-handed n Non-handed
n Provides hold-open function with n For abusive applications features n For abusive applications features
templated stop/hold-open points solid forged steel main arm and solid forged steel main arm and
n Handle controls hold-open forearm with spring loaded stop in forearm with spring loaded stop in
function the soffit shoe the soffit shoe. Handle controls
n Optional hold-open function
n Optional
n Optional
C33
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
