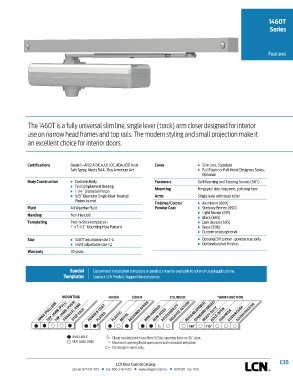

Page 155 - Herrajes Patricios - Catalogo LCN

1460T
Series

Features

The 1460T is a fully universal slim line, single lever (track) arm closer designed for interior
use on narrow head frames and top rails. The modern styling and small projection make it
an excellent choice for interior doors.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Cover n Slim Line, Standard
Salt Spray, Meets BAA - Buy American Act n Full Plastic or Full Metal Designers Series,
Optional
Body Construction n Cast Iron Body Fasteners Self Reaming and Tapping Screws (SRT)
n Full Complement Bearing Mounting Hinge pull side, top jamb, pull stop face
n 1-1/4˝ Diameter Piston
n 5/8˝ Diameter Single Heat Treated Arms Single level with track roller
Pinion Journal Finishes/Colors/ n Aluminum (689)
Fluid All Weather Fluid Powder Coat n Statuary Bronze (690)
n Light Bronze (691)
Handing Non-Handed
n Black (693)
Templating Peel-n-Stick templates - n Dark Bronze (695)
1˝ x 7-1/2˝ Mounting Hole Pattern n Brass (696)
n Custom colors optional
Size n 1460T adjustable size 2-4 n Optional SRI primer - powder coat only
n 1461T adjustable size 1-2 n Optional plated finishes
Warranty 30 years

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
STANDARD (SINGLE)
DELAYED ACTION
TOP JAMB (PULL)
HINGE (PULL) SIDE TOP JAMB (PUSH) STOP FACE POWDER COAT PLASTIC METAL DESIGNER SERIES NON-HANDED ACCESSIBILITY REGULAR (DOUBLE) HEAVY DUTY EDA/HEDA CUSH/HCUSH
SCUSH/SHCUSH
PARALLEL ARM
HOLD-OPEN
NON-SIZED
PLATED
D 180 115
AVAILABLE Closer available with less than 5.0 lbs. opening force on 36˝ door.
NOT AVAILABLE * Maximum opening/hold-open point with standard template.
D = For designer series only.
