1460T
Series

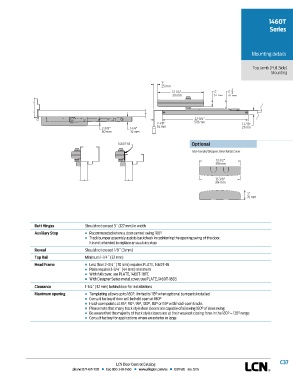

Mounting details

Top Jamb (Pull Side)
Mounting

1"
25 mm
12-1/4"
311 mm

22-3/4"
2-1/8" 578 mm 1-1/16"
2-3/8" 1-1/4" 54 mm 27 mm
60 mm 32 mm

1460T-18 Optional
Non-handed Designer Series Metal Cover
12-1/2"
318 mm

12-3/8"
314 mm

3"
76 mm

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop n Recommended where a door cannot swing 180°
n Track bumper assembly assists backcheck in cushioning the opening swing of the door.
It is not intended to replace an auxiliary stop
Reveal Should not exceed 1/8˝ (3 mm)
Top Rail Minimum 1-1/4˝ (32 mm)
Head Frame n Less than 2-3/4˝ (70 mm) requires PLATE, 1460T-18
n Plate requires 1-3/4˝ (44 mm) minimum
n With full cover, use PLATE, 1460T-18FC
n With Designer Series metal cover, use PLATE, 1460T-18DS
Clearance 1-1/4˝ (32 mm) behind door for installations
Maximum opening n Templating allows up to 180°, limited to 115° when optional bumper is installed
n Consult factory if door will be held open at 180°
n Hold-open points at 85°, 90°, 95°, 100°, 110° or 115° with hold-open tracks
n Please note that many track style door closers are capable of allowing 180° of door swing
n Be aware that the majority of track style closers are at their weakest closing force in the 180° – 130° range
n Consult factory for applications where an exterior or large

C37
LCN Door Control Catalog
