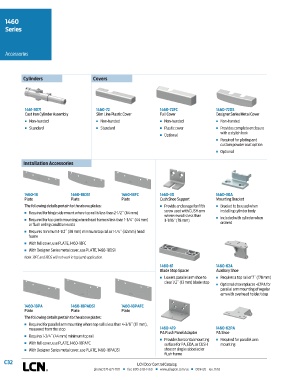

1460
Series

Accessories

Cylinders Covers

1461-3071 1460-72 1460-72FC 1460-72DS
Cast Iron Cylinder Assembly Slim Line Plastic Cover Full Cover Designer Series Metal Cover
n Non-handed n Non-handed n Non-handed n Non-handed
n Standard n Standard n Plastic cover n Provides complete enclosure
n Optional with a stylish look
n Required for plating and
custom powder coat option
n Optional

Installation Accessories

1460-18 1460-18DS1 1460-18FC 1460-30 1460-30A
Plate Plate Plate Cush Shoe Support Mounting Bracket
The following details pertain to the above plates: n Provide anchorage for fifth n Bracket to be used when
n Required for hinge side mount where top rail is less than 2-1/2˝ (64 mm) screw used with CUSH arm installing cylinder body
where reveal is less than
n Required for top jamb mounting where head frame is less than 1-3/4˝ (44 mm) 3-1/16˝ (78 mm) n Included with cylinder when
or flush ceiling condition exists ordered
n Requires minimum 1-1/2˝ (38 mm) minimum top rail or 1-1/4˝ (32 mm) head
frame
n With full cover, use PLATE, 1460-18FC
n With Designer Series metal cover, use PLATE, 1460-18DS1
Note: 18FC and 18DS will not work in top jamb application.

1460-61 1460-62A
Blade Stop Spacer Auxiliary Shoe
n Lowers parallel arm shoe to n Requires a top rail of 7˝ (178 mm)
clear 1/2˝ (13 mm) blade stop
n Optional shoe replaces -62PA for
parallel arm mounting of regular
arm with overhead holder/stop

1460-18PA 1460-18PADS1 1460-18PAFC
Plate Plate Plate
The following details pertain to the above plates:
n Required for parallel arm mounting where top rail is less than 4-3/8˝ (111 mm),
measured from the stop 1460-419 1460-62PA
PA Flush Panel Adapter PA Shoe
n Requires 1-3/4˝ (44 mm) minimum top rail
n Provides horizontal mounting n Required for parallel arm
n With full cover, use PLATE, 1460-18PAFC surface for PA, EDA, or CUSH mounting
n With Designer Series metal cover, use PLATE, 1460-18PADS1 shoe on single rabbeted or
flush frame
C32 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
