1460
Series

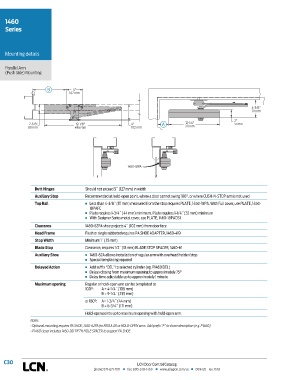

Mounting details

Parallel Arm
(Push Side) Mounting

B 4"
102 mm

4-3/8"
111 mm
2"
2-3/8" 19-1/8" 4" A 12-1/4" 51 mm
60 mm 486 mm 102 mm 311 mm

1460-18PA

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point, where a door cannot swing 180°, or where CUSH-N-STOP arm is not used
Top Rail n Less than 4-3/8˝ (111 mm) measured from the stop requires PLATE, 1460-18PA. With Full cover, use PLATE, 1460-
18PAFC
n Plate requires 1-3/4˝ (44 mm) minimum. Plate requires 1-1/4˝ (32 mm) minimum
n With Designer Series metal cover, use PLATE, 1460-18PADS1
Clearance 1460-62PA shoe projects 4˝ (102 mm) from door face
Head Frame Flush or single rabbeted requires PA SHOE ADAPTER, 1460-419
Stop Width Minimum 1˝ (25 mm)
Blade Stop Clearance, requires 1/2˝ (13 mm) BLADE STOP SPACER, 1460-61
Auxiliary Shoe n 1460-62A allows installation of regular arm with overhead holder/stop
n Special templating required
Delayed Action n Add suffix “DEL” to selected cylinder (eg. P1460 DEL)
n Delays closing from maximum opening to approximately 75°
n Delay time adjustable up to approximately 1 minute
Maximum opening Regular or hold-open arm can be templated to
100°: A = 4-1/4˝ (108 mm)
B = 9-1/4˝ (235 mm)
or 180°: A= 1-3/4˝ (44 mm)
B = 6-3/4˝ (171 mm)
Hold-open points up to maximum opening with hold-open arm.
Notes:
• Optional mounting requires PA SHOE, 1460-62PA for REGULAR or HOLD-OPEN arms. Add prefix “P” to closer description (e.g. P1460)
• P1460 closer includes 1460-201 FIFTH HOLE SPACER to support PA SHOE.

C30 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
