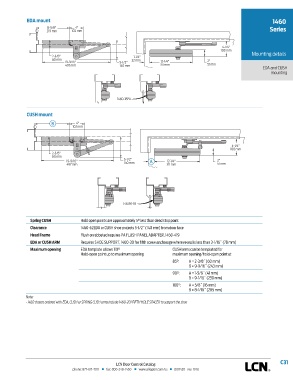

EDA mount 1460
8-5/8" 4" Series
219 mm 102 mm

4-1/4"
108 mm
2-3/8" 1-1/4" Mounting details
60 mm 32 mm 2"
19-9/16" 5-1/2" 12-1/4"
497 mm 140 mm 311 mm 51 mm
EDA and CUSH
mounting

1460-18PA

CUSH mount
B 4"
102 mm

4-1/4"
108 mm
2-3/8"
60 mm
19-9/16" 5-1/2" A 12-1/4" 2"
497 mm 140 mm 311 mm 51 mm

1461PA-18

Spring CUSH Hold open points are approximately 5° less than dead stop point
Clearance 1460-62EDA or CUSH shoe projects 5-1/2˝ (140 mm) from door face
Head Frame Flush or rabbeted requires PA FLUSH PANEL ADAPTER, 1460-419
EDA or CUSH ARM Requires SHOE SUPPORT, 1460-30 for fifth screw anchorage where reveal is less than 3-1/16˝ (78 mm)
Maximum opening EDA template allows 110° CUSH arms can be templated for
Hold-open point up to maximum opening maximum opening/hold-open point at
85°: A = 2-3/8˝ (60 mm)
B = 9-9/16˝ (243 mm)
90°: A = 1-5/8˝ (41 mm)
B = 9-1/16˝ (230 mm)
100°: A = 5/8˝ (16 mm)
B = 8-1/16˝ (205 mm)
Note:
• 1460 closers ordered with EDA, CUSH or SPRING CUSH arms include 1460-201 FIFTH HOLE SPACER to support the shoe

C31
