1460T
Series

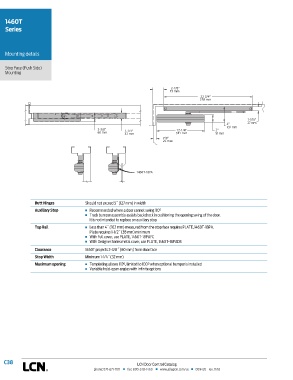

Mounting details

Stop Face (Push Side)
Mounting

2-7/8"
73 mm
22-3/4"
578 mm

1-1/16"
4" 27 mm
2-3/8" 1-1/4" 12-1/4" 2" 102 mm
60 mm 32 mm 311 mm 51 mm
7/8"
22 mm

1460T-18PA

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop n Recommended where a door cannot swing 110°
n Track bumper assembly assists backcheck in cushioning the opening swing of the door.
It is not intended to replace an auxiliary stop
Top Rail n Less than 4˝ (102 mm) measured from the stop face requires PLATE, 1460T-18PA.
Plate requires 1-1/2˝ (38 mm) minimum
n With Full cover, use PLATE, 1460T-18PAFC
n With Designer Series metal cover, use PLATE, 1460T-18PADS
Clearance 1460T projects 2-3/8˝ (60 mm) from door face
Stop Width Minimum 1-1/4˝ (32 mm)
Maximum opening n Templating allows 110°, limited to 100° when optional bumper is installed
n Variable hold-open angles with infinite options
