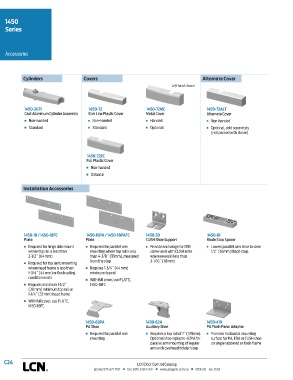

1450
Series

Accessories

Cylinders Covers Alternate Cover
Left hand shown

1450-3071 1450-72 1450-72MC 1450-72ALT
Cast Aluminum Cylinder Assembly Slim Line Plastic Cover Metal Cover Alternate Cover
n Non-handed n Non-handed n Handed n Non-handed
n Standard n Standard n Optional n Optional, sold separately
(not packed with closer)

1450-72FC
Full Plastic Cover
n Non-handed
n Optional

Installation Accessories

1450-18 / 1450-18FC 1450-18PA / 1450-18PAFC 1450-30 1450-61
Plate Plate CUSH Shoe Support Blade Stop Spacer
n Required for hinge side mount n Required for parallel arm n Provide anchorage for fifth n Lowers parallel arm shoe to clear
where top rail is less than mounting where top rail is less screw used with CUSH arms 1/2˝ (13 mm) blade stop.
2-1/2˝ (64 mm) than 4-3/8˝ (111mm), measured where reveal is less than
n Required for top jamb mounting from the stop 3-1/16˝ (78mm)
where head frame is less than n Requires 1-3/4˝ (44 mm)
1-3/4˝ (44 mm) or flush ceiling minimum top rail
condition exists
n With full cover, use PLATE,
n Requires minimum 1-1/2˝ 1450-18FC
(38 mm) minimum top rail or
1-1/4˝ (32 mm) head frame
n With full cover, use PLATE,
1450-18FC

1450-62PA 1450-62A 1450-419
PA Shoe Auxiliary Shoe PA Flush Panel Adapter
n Required for parallel arm n Requires a top rail of 7˝ (178mm). n Provides horizontal mounting
mounting Optional shoe replaces -62PA for surface for PA, EDA or CUSH shoe
parallel arm mounting of regular on single rabbeted or flush frame
arm with overhead holder/stop
