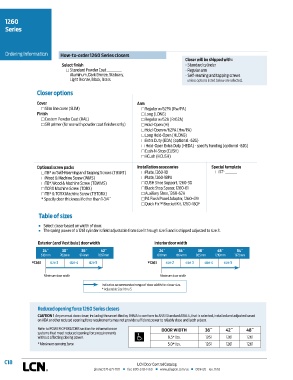

1260
Series

Ordering Information How-to-order 1260 Series closers
Closer will be shipped with:
Select finish - Standard cylinder
Standard Powder Coat __________ - Regular arm
Aluminum, Dark Bronze, Statuary, - Self-reaming and tapping screws
Light Bronze, Black, Brass unless options listed below are selected.

Closer options

Cover Arm
Slim line cover (SLIM) Regular w/62PA (Rw/PA)
Finish Long (LONG)
Custom Powder Coat (RAL) Regular w/62A (R/62A)
SRI primer (for use with powder coat finishes only) Hold-Open (H)
Hold-Open w/62PA (Hw/PA)
Long Hold-Open (HLONG)
Extra Duty (EDA) (optional -62G)
Hold-Open Extra Duty (HEDA) - specify handing (optional -62G)
Cush-N-Stop (CUSH)
HCush (HCUSH)

Optional screw packs Installation accessories Special template
TB* w/Self-Reaming and Tapping Screws (TBSRT) Plate, 1260-18 ST- ________
Wood & Machine Screw (WMS) Plate, 1260-18PA
TB*, Wood & Machine Screw (TBWMS) CUSH Shoe Support, 1260-30
TORX Machine Screw (TORX) Blade Stop Spacer, 1260-61
TB* & TORX Machine Screw (TBTORX) Auxiliary Shoe, 1260-62A
* Specify door thickness if other than 1-3/4˝ PA Flush Panel Adapter, 1260-419
Quick Fix™ Bracket Kit, 1260-18QF

Table of sizes

n Select closer based on width of door.
n The spring power of a 1261 cylinder is field adjustable from size 1 through size 5 and is shipped adjusted to size 3.

Exterior (and Vestibule) door width Interior door width
24˝ 30˝ 36˝ 42˝ 24˝ 34˝ 38˝ 48˝ 54˝
610mm 762mm 914mm 1067mm 610mm 864mm 965mm 1219mm 1372mm
*1261 size 3 size 4 size 5 *1261 size 2 size 3 size 4 size 5

Minimum door width Minimum door width

Indicates recommended range of door width for closer size.
* Adjustable Size 1 thru 5.

Reduced opening force 1260 Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements
without affecting closing power. 8.5* lbs. 1261 1261 1261
* Maximum opening force. 5.0* lbs. 1261 1261 1261

C18 LCN Door Control Catalog
