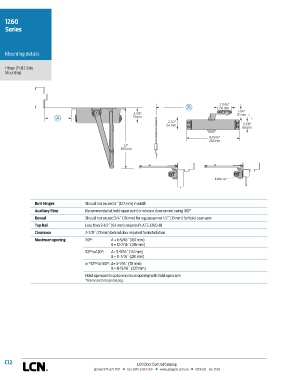

Mounting details

Hinge (Pull) Side
Mounting

2-11/16"
B 68 mm
1-1/4"
2-7/8" 32 mm
A 73 mm
2-1/2"
64 mm 3-3/8"
86 mm
9-15/16"
252 mm
12"
305 mm

1260-18

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Should not exceed 3/4˝ (19 mm) for regular arm or 1/2˝ (13 mm) for hold-open arm
Top Rail Less than 2-1/2˝ (64 mm) requires PLATE, 1260-18
Clearance 2-7/8˝ (73 mm) behind door required for installation
Maximum opening 110°: A = 6-9/16˝ (167 mm)
B = 12-7/16˝ (316 mm)
101° to 120°: A= 5-9/16˝ (141 mm)
B = 11-7/16˝ (291 mm)
or *121° to 180°: A= 3-1/16˝ (78 mm)
B = 8-15/16˝ (227 mm)
Hold-open points up to maximum opening with hold-open arm
*Frame and trim permitting.
