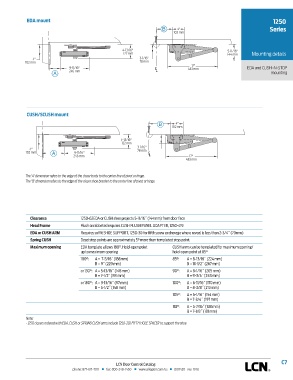

EDA mount 1250
B 4" Series
102 mm

4-13/16" 5-11/16"
122 mm 144 mm Mounting details
4" 3-1/16"
102 mm 78 mm
17"
9-11/16" 433 mm EDA and CUSH -N-STOP
246 mm mounting
A

CUSH/SCUSH mount

B 4"
102 mm

4-13/16"
122 mm
3-1/16"
4" 78 mm
102 mm A 9-11/16"
246 mm 17"
433 mm

The 'A' dimension refers to the edge of the closer body to the center line of pivot or hinge.
The 'B' dimension refers to the edge of the closer shoe bracket to the center line of pivot or hinge.

Clearance 1250-62EDA or CUSH shoe projects 5-11/16˝ (144mm) from door face
Head Frame Flush or rabbeted requires CUSH FLUSH PANEL ADAPTER, 1250-419
EDA or CUSH ARM Requires soffit SHOE SUPPORT, 1250-30 for fifth screw anchorage where reveal is less than 2-3/4˝ (70mm)
Spring CUSH Dead stop points are approximately 5° more than templated stop point.
Maximum opening EDA template allows 180°. Hold-open point CUSH arms can be templated for maximum opening/
up to maximum opening hold-open point at 85°
100°: A = 7-5/16˝ (186mm) 85°: A = 8-13/16˝ (224 mm)
B = 9˝ (229 mm) B = 10-1/2˝ (267 mm)
or 130°: A = 5-13/16˝ (148 mm) 90°: A = 8-1/16˝ (205 mm)
B = 7-1/2˝ (191 mm) B = 9-3/4˝ (248 mm)
or 180°: A = 3-13/16˝ (97 mm) 100°: A = 6-11/16˝ (170 mm)
B = 5-1/2˝ (140 mm) B = 8-3/8˝ (213 mm)
105°: A = 6-1/16˝ (154 mm)
B = 7-3/4˝ (197 mm)
110°: A = 5-7/16˝ (138 mm)
B = 7-1/8˝ (181 mm)
Note:
• 1250 closers ordered with EDA, CUSH or SPRING CUSH arms include 1250-201 FIFTH HOLE SPACER to support the shoe

C7
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
