1250
Series

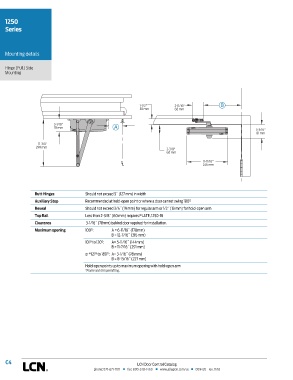

Mounting details

Hinge (Pull) Side
Mounting

1-1/2" 2-11/16" B
38 mm 68 mm

3-1/16"
78 mm A
3-3/16"
81 mm
11-3/4"
298 mm
2-3/8"
60 mm
9-11/16"
246 mm

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Should not exceed 3/4˝ (19 mm) for regular arm or 1/2˝ (13 mm) for hold-open arm
Top Rail Less than 2-3/8˝ (60 mm) requires PLATE, 1250-18
Clearance 3-1/16˝ (78mm) behind door required for installation.
Maximum opening 100°: A = 6-11/16˝ (170mm)
B = 12-7/16˝ (316 mm)
101° to 120°: A= 5-11/16˝ (144mm)
B = 11-7/16˝ (291 mm)
or *121° to 180°: A= 3-1/16˝ (78 mm)
B = 8-15/16˝ (227 mm)
Hold-open points up to maximum opening with hold-open arm
*Frame and trim permitting.
