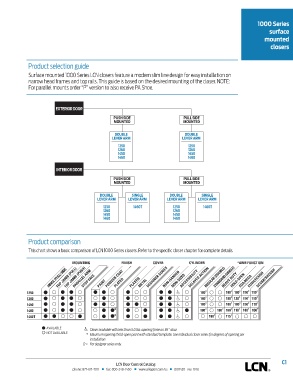

1000 Series
surface
mounted
closers

Product selection guide

Surface mounted 1000 Series LCN closers feature a modern slim line design for easy installation on
narrow head frames and top rails. This guide is based on the desired mounting of the closer. NOTE:
For parallel mounts order “P” version to also receive PA Shoe.

EXTERIOR DOOR
PUSH SIDE PULL SIDE
MOUNTED MOUNTED

DOUBLE DOUBLE
LEVER ARM LEVER ARM
1250 1250
1260 1260
1450 1450
1460 1460

INTERIOR DOOR
PUSH SIDE PULL SIDE
MOUNTED MOUNTED

DOUBLE SINGLE DOUBLE SINGLE
LEVER ARM LEVER ARM LEVER ARM LEVER ARM
1250 1460T 1250 1460T
1260 1260
1450 1450
1460 1460

Product comparison
This chart shows a basic comparison of LCN 1000 Series closers. Refer to the specific closer chapter for complete details.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
STANDARD (SINGLE)
TOP JAMB (PULL)
DELAYED ACTION
HINGE (PULL) SIDE TOP JAMB (PUSH) STOP FACE PAINT POWDER COAT PLASTIC METAL DESIGNER SERIES NON-HANDED ACCESSIBILITY REGULAR (DOUBLE) HEAVY DUTY EDA/HEDA CUSH/HCUSH
SCUSH/SHCUSH
PARALLEL ARM
HOLD-OPEN
NON-SIZED
PLATED
1250 180 180 180 110 110
1260 180 180 120 110 110
1450 180 180 180 110 110
1460 D 180 180 180 110 100 100
1460T D 180 115

AVAILABLE Closer available with less than 5.0 lbs. opening force on 36˝ door.
NOT AVAILABLE * Maximum opening/hold-open point with standard template. See individual closer series for degrees of opening per
installation.
D = For designer series only.

C1
LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
