4000T
Series

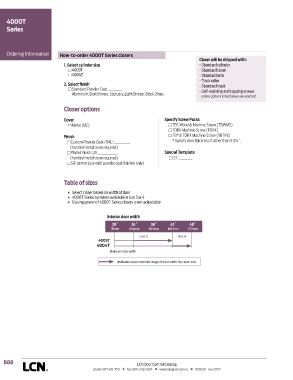

Ordering Information How-to-order 4000T Series closers
Closer will be shipped with:
1. Select cylinder size - Standard cylinder
4003T - Standard cover
4004T - Standard arm
- Track roller
2. Select finish - Standard track
Standard Powder Coat __________
Aluminum, Dark Bronze, Statuary, Light Bronze, Black, Brass - Self-reaming and tapping screws
unless options listed below are selected.

Closer options
Cover Specify Screw Packs
Metal (MC) TB*, Wood & Machine Screw (TBWMS)
TORX Machine Screw (TORX)
Finish TB* & TORX Machine Screw (TBTRX)
Custom Powder Coat (RAL) ___________ * Specify door thickness if other than 1-3/4˝.
(handed metal cover required)
Plated Finish, US ______________ Special Template
(handed metal cover required) ST- _________
SRI primer (use with powder coat finishes only)

Table of sizes

n Select closer based on width of door
n 4000T Series cylinders available in size 3 or 4
n Closing power of 4000T Series closers is not adjustable

Interior door width
28˝ 34˝ 38˝ 42˝ 48˝
711mm 864mm 965mm 1067mm 1219mm
size 3 size 4
4003T
4004T
Minimum door width

Indicates recommended range of door width for closer size.

B88 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
