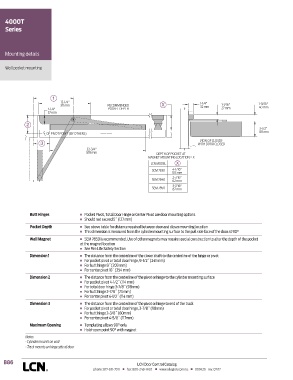

4000T
Series

Mounting details

Wall pocket mounting

1
12-1/4" 1-1/4"
311 mm RECOMMENDED X 32 mm 1-1/16" 1-9/16"
2-1/4" POCKET DEPTH 27 mm 40 mm
57 mm

2
3-1/2"
OF PIVOT POINT (BY OTHERS) 89 mm
VIEW OF CLOSER
3 WITH DOOR CLOSED
22-3/4"
578 mm DEPTH OF POCKET AT
MAGNET MOUNTING LOCATION = X
LCN MODEL X
SEM 7830 4-1/16"
103 mm
2-7/16"
SEM 7840 62 mm
3-7/16"
SEM 7850 87 mm

Butt Hinges n Pocket Pivot, Total Door Hinge or Center Pivot are door mounting options
n Should not exceed 5˝ (127 mm)
Pocket Depth n See above table for distance required between door and closer mounting location
n This dimension is measured from the cylinder mounting surface to the pull side face of the door at 90°
Wall Magnet n SEM 7850 is recommended. Use of other magnets may require special construction to alter the depth of the pocket
at the magnet location
n See Fire Life Safety Section
Dimension 1 n The distance from the centerline of the closer shaft to the centerline of the hinge or pivot
n For pocket pivot or total door hinge, 9-1/2˝ (241 mm)
n For butt hinge 8˝ (203 mm)
n For center pivot 10˝ (254 mm)
Dimension 2 n The distance from the centerline of the pivot or hinge to the cylinder mounting surface
n For pocket pivot 4-1/2˝ (114 mm)
n For total door hinge 3-7/8˝ (98mm)
n For butt hinge 2-7/8˝ (73 mm)
n For center pivot 4-1/2˝ (114 mm)
Dimension 3 n The distance from the centerline of the pivot or hinge to end of the track
n For pocket pivot or total door hinge, 3-7/8˝ (98mm)
n For butt hinge 2-3/8˝ (60mm)
n For center pivot 4-5/8˝ (117mm)
Maximum Opening n Templating allows 90° only
n Hold-open point 90° with magnet
Notes:
• Cylinder mounts on wall
• Track mounts on hinge side of door
