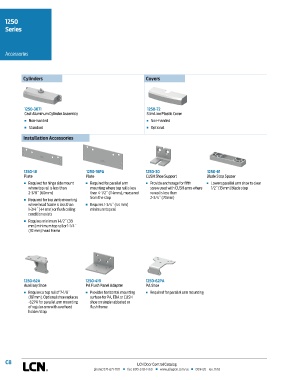

1250
Series

Accessories

Cylinders Covers

1250-3071 1250-72
Cast Aluminum Cylinder Assembly Slim Line Plastic Cover
n Non-handed n Non-handed
n Standard n Optional
Installation Accessories

1250-18 1250-18PA 1250-30 1250-61
Plate Plate CUSH Shoe Support Blade Stop Spacer
n Required for hinge side mount n Required for parallel arm n Provide anchorage for fifth n Lowers parallel arm shoe to clear
where top rail is less than mounting where top rail is less screw used with CUSH arms where 1/2˝ (13 mm) blade stop
2-3/8˝ (60mm) than 4-1/2˝ (114mm), measured reveal is less than
n Required for top jamb mounting from the stop 2-3/4˝ (70mm)
where head frame is less than n Requires 1-3/4˝ (44 mm)
1-3/4˝ (44 mm) or flush ceiling minimum top rail
condition exists
n Requires minimum 1-1/2˝ (38
mm) minimum top rail or 1-1/4˝
(32 mm) head frame

1250-62A 1250-419 1250-62PA
Auxiliary Shoe PA Flush Panel Adapter PA Shoe
n Requires a top rail of 7-1/8˝ n Provides horizontal mounting n Required for parallel arm mounting
(181mm). Optional shoe replaces surface for PA, EDA or CUSH
-62PA for parallel arm mounting shoe on single rabbeted or
of regular arm with overhead flush frame
holder/stop

C8 LCN Door Control Catalog
