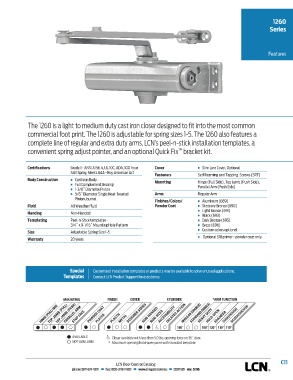

1260
Series

Features

The 1260 is a light to medium duty cast iron closer designed to fit into the most common
commercial foot print. The 1260 is adjustable for spring sizes 1-5. The 1260 also features a
complete line of regular and extra duty arms, LCN’s peel-n-stick installation templates, a
™
convenient spring adjust pointer, and an optional Quick Fix bracket kit.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Cover n Slim Line Cover, Optional
Salt Spray, Meets BAA - Buy American Act
Fasteners Self Reaming and Tapping Screws (SRT)
Body Construction n Cast Iron Body Mounting Hinge (Pull Side), Top Jamb (Push Side),
n Full Complement Bearing Parallel Arm (Push Side)
n 1-3/8˝ Diameter Piston
n 5/8˝ Diameter Single Heat Treated Arms Regular Arm
Pinion Journal Finishes/Colors/ n Aluminum (689)
Fluid All Weather Fluid Powder Coat n Statuary Bronze (690)
n Light Bronze (691)
Handing Non-Handed
n Black (693)
Templating Peel-n-Stick templates - n Dark Bronze (695)
3/4˝ x 9-1/16˝ Mounting Hole Pattern n Brass (696)
n Custom colors optional
Size Adjustable Spring Size 1-5
n Optional SRI primer - powder coat only
Warranty 20 years

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
STANDARD (SINGLE)
DELAYED ACTION
TOP JAMB (PULL)
HINGE (PULL) SIDE TOP JAMB (PUSH) STOP FACE POWDER COAT PLASTIC METAL DESIGNER SERIES NON-HANDED ACCESSIBILITY REGULAR (DOUBLE) HEAVY DUTY EDA/HEDA CUSH/HCUSH
SCUSH/SHCUSH
PARALLEL ARM
HOLD-OPEN
NON-SIZED
PLATED
180° 180° 120° 110° 110°
AVAILABLE Closer available with less than 5.0 lbs. opening force on 36˝ door.
NOT AVAILABLE * Maximum opening/hold-open point with standard template.

C11
LCN Door Control Catalog
LCN Door Control Catalog
