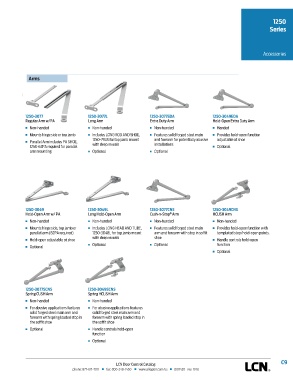

Page 129 - Herrajes Patricios - Catalogo LCN

1250
Series

Accessories

Arms

1250-3077 1250-3077L 1250-3077EDA 1250-3049EDA
Regular Arm w/PA Long Arm Extra Duty Arm Hold-Open Extra Duty Arm
n Non-handed n Non-handed n Non-handed n Handed
n Mounts hinge side or top jamb n Includes LONG ROD AND SHOE, n Features solid forged steel main n Provides hold-open function
n Parallel Arm includes PA SHOE, 1250-79LR for top jamb mount and forearm for potentially abusive adjustable at shoe
1250-62PA required for parallel with deep reveals installations n Optional
arm mounting n Optional n Optional

1250-3049 1250-3049L 1250-3077CNS 1250-3049CNS
Hold-Open Arm w/ PA Long Hold-Open Arm Cush-n-Stop Arm HCUSH Arm
®
n Non-handed n Non-handed n Non-handed n Non-handed
n Mounts hinge side, top jamb or n Includes LONG HEAD AND TUBE, n Features solid forged steel main n Provides hold-open function with
parallel arm (62PA required) 1250-3048L for top jamb mount arm and forearm with stop in soffit templated stop/hold-open points.
with deep reveals shoe
n Hold-open adjustable at shoe n Handle controls hold-open
n Optional n Optional function
n Optional
n Optional

1250-3077SCNS 1250-3049SCNS
Spring CUSH Arm Spring HCUSH Arm
n Non-handed n Non-handed
n For abusive applications features n For abusive applications features
solid forged steel main arm and solid forged steel main arm and
forearm with spring loaded stop in forearm with spring loaded stop in
the soffit shoe the soffit shoe
n Optional n Handle controls hold-open
function
n Optional
