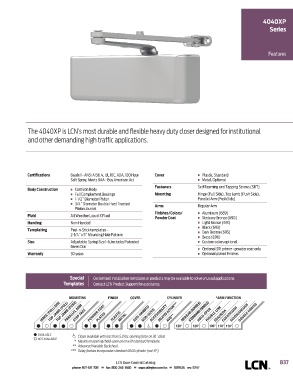

4040XP
Series

Features

The 4040XP is LCN’s most durable and flexible heavy duty closer designed for institutional
and other demanding high traffic applications.

Certifications Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Cover n Plastic, Standard
Salt Spray, Meets BAA - Buy American Act n Metal, Optional
Fasteners Self Reaming and Tapping Screws (SRT)
Body Construction n Cast Iron Body
n Full Complement Bearings Mounting Hinge (Pull Side), Top Jamb (Push Side),
n 1-1/2˝ Diameter Piston Parallel Arm (Push Side)
n 3/4˝ Diameter Double Heat Treated Arms Regular Arm
Pinion Journal
Finishes/Colors/ n Aluminum (689)
Fluid All Weather Liquid X Fluid Powder Coat n Statuary Bronze (690)
Handing Non-Handed n Light Bronze (691)
n Black (693)
Templating Peel-n-Stick templates - n Dark Bronze (695)
2-1/4˝ x 5˝ Mounting Hole Pattern
n Brass (696)
Size Adjustable Spring Size 1-6, includes Patented n Custom colors optional
Green Dial
n Optional SRI primer - powder coat only
Warranty 30 years n Optional plated finishes

Special Customized installation templates or products may be available to solve unusual applications.
Templates Contact LCN Product Support for assistance.

MOUNTING FINISH COVER CYLINDER *ARM FUNCTION
HINGE (PULL) SIDE TOP JAMB (PUSH) STOP FACE POWDER COAT PLASTIC METAL NON-HANDED ACCESSIBILITY AVB** REGULAR (DOUBLE) HOLD-OPEN FUSIBLE LINK CUSH/HCUSH DOUBLE EGRESS
STANDARD (SINGLE)
TOP JAMB (PULL)
DELAYED ACTION***
SCUSH/SHCUSH
PARALLEL ARM
NON-SIZED
EDA/HEDA
PLATED
120° 120° 180° 110° 110°
AVAILABLE Closer available with less than 5.0 lbs. opening force on 36˝ door.
NOT AVAILABLE
* Maximum opening/hold-open point with standard template.
** Advanced Variable Backcheck.
*** Delay feature incorporates standard 4040 cylinder (not XP).
