P. 66

4030T
   Series

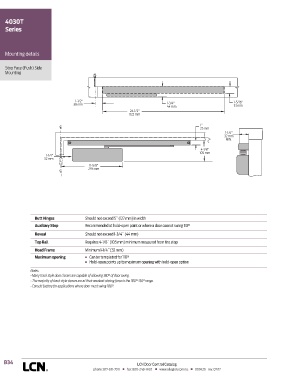

   Mounting details


   Stop Face (Push) Side
   Mounting






                                 1-1/2"                                                            1-5/16"
                                38 mm                                  1-3/4"                      33 mm
                                                                       44 mm
                                                       24-1/2"
                                                       622 mm
                                                                                     1"
                          C L                                                        25 mm
                                                                                               1-1/4"
                                                                                               32 mm
                                                                                               MIN.
                                                                                     4-1/8"
                                                                                    105 mm
                    1-1/4"
                    32 mm
                                      11-5/8"
                                      295 mm
                          C L










                Butt Hinges          Should not exceed 5˝ (127 mm) in width
                  Auxiliary Stop     Recommended at hold-open point or where a door cannot swing 110°
                  Reveal             Should not exceed 1-3/4˝ (44 mm)
                Top Rail             Requires 4-1/8˝ (105 mm) minimum measured from the stop
                Head Frame           Minimum 1-1/4˝ (32 mm)
                Maximum opening      n  Can be templated for 110°
                                     n  Hold-open points up to maximum opening with hold-open option
                Notes:
                •  Many track style door closers are capable of allowing 180° of door swing.
              •  The majority of track style closers are at their weakest closing force in the 180°-130° range.
              •  Consult factory for applications where door must swing 180°.


















   B34                                                    LCN Door Control Catalog
                                        phone: 877-671-7011      n    fax: 800-248-1460      n    www.allegion.com/us     n    009426    rev. 07/17
