P. 70
4040XP
Series

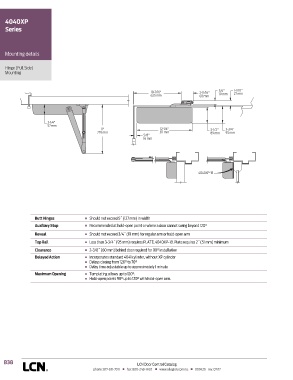

Mounting details
Hinge (Pull Side)
Mounting
10-7/16" 2-11/16" 3/4" 1-1/16"
27 mm
625 mm 68 mm 19 mm
2-1/4"
57 mm
11" 12-1/4" 3-1/2" 3-3/4"
279 mm 311 mm 89 mm 95 mm
5/8"
16 mm
4040XP-18
Butt Hinges n Should not exceed 5˝ (127 mm) in width
Auxiliary Stop n Recommended at hold-open point or where a door cannot swing beyond 120°
Reveal n Should not exceed 3/4˝ (19 mm) for regular arm or hold-open arm
Top Rail n Less than 3-3/4˝ (95 mm) requires PLATE, 4040XP-18. Plate requires 2˝ (51 mm) minimum
Clearance n 2-3/8˝ (60 mm) behind door required for 90° installation
Delayed Action n Incorporates standard 4041 cylinder, without XP cylinder
n Delays closing from 120° to 70°
n Delay time adjustable up to approximately 1 minute
Maximum Opening n Templating allows up to 120°.
n Hold-open points 90° up to 120° with hold-open arm.
B38 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
