4030T
Series

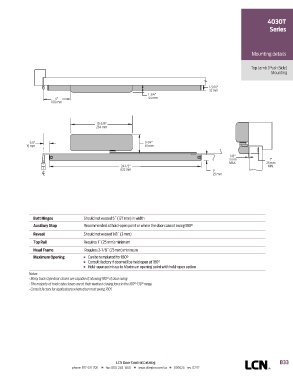

Mounting details

Top Jamb (Push Side)
Mounting

1-5/16"
32 mm
1-3/4"
4" 44 mm
100 mm

10-3/8"
264 mm

3/4" 3-1/4"
19 mm 81 mm
1/8"
3 mm 1"
MAX. 25 mm
24-1/2" MIN.
622 mm 1"
C L 25 mm

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where the door cannot swing 180°
Reveal Should not exceed 1/8˝ (3 mm)
Top Rail Requires 1˝ (25 mm) minimum
Head Frame Requires 2-7/8˝ (73 mm) minimum
Maximum Opening n Can be templated for 180°
n Consult factory if door will be held open at 180°
n Hold-open points up to Maximum opening point with hold-open option
Notes:
• Many track style door closers are capable of allowing 180° of door swing.
• The majority of track style closers are at their weakest closing force in the 180°-130° range.
• Consult factory for applications where door must swing 180°.

LCN Door Control Catalog B33
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
