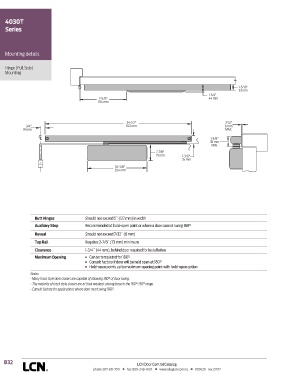

4030T
Series

Mounting details

Hinge (Pull Side)
Mounting

1-5/16"
33 mm
1-3/4"
7-5/8" 44 mm
194 mm

24-1/2" 7/32"
3/4" 622 mm 6 mm
19 mm MAX.
C 1-3/8"
L
35 mm
MIN.
2-7/8"
73 mm 1-3/8"
35 mm
10-3/8"
264 mm

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point or where a door cannot swing 180°
Reveal Should not exceed 7/32˝ (6 mm)
Top Rail Requires 2-7/8˝ (73 mm) minimum
Clearance 1-3/4˝ (44 mm), behind door required for installation
Maximum Opening n Can be templated for 180°
n Consult factory if door will be held open at 180°
n Hold-open points up to maximum opening point with hold-open option
Notes:
• Many track style door closers are capable of allowing 180° of door swing.
• The majority of track style closers are at their weakest closing force in the 180°-130° range.
• Consult factory for applications where door must swing 180°.

B32 LCN Door Control Catalog
