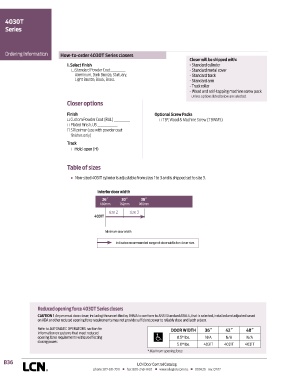

Page 68 - Herrajes Patricios - Catalogo LCN

4030T
Series

Ordering Information How-to-order 4030T Series closers
Closer will be shipped with:
1. Select finish - Standard cylinder
Standard Powder Coat __________ - Standard metal cover
Aluminum, Dark Bronze, Statuary, - Standard track
Light Bronze, Black, Brass. - Standard arm
- Track roller
- Wood and self-tapping machine screw pack
unless options listed below are selected.
Closer options

Finish Optional Screw Packs
Custom Powder Coat (RAL) ___________ TB*, Wood & Machine Screw (TBWMS)
Plated Finish, US ______________
SRI primer (use with powder coat
finishes only)
Track
Hold-open (H)

Table of sizes

n Non-sized 4031T cylinder is adjustable from sizes 1 to 3 and is shipped set to size 3.

Interior door width
26˝ 30˝ 38˝
660mm 762mm 965mm
size 2 size 3
4031T

Minimum door width

Indicates recommended range of door width for closer size.

Reduced opening force 4030T Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to AUTOMATIC OPERATORS section for DOOR WIDTH 36˝ 42˝ 48˝
information on systems that meet reduced
opening force requirements without effecting 8.5* lbs. N/A N/A N/A
closing power.
5.0* lbs. 4031T 4031T 4031T
* Maximum opening force.

B36 LCN Door Control Catalog
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
