4040XP
Series

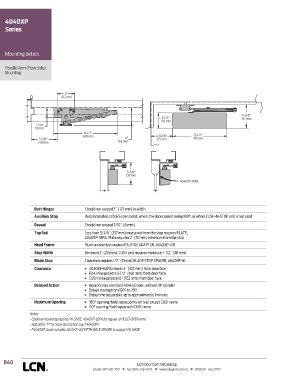

Mounting details

Parallel Arm (Push Side)
Mounting

4"
102 mm

5-3/8"
3-1/2" 137 mm
89 mm
2-1/4"
57 mm
14-1/2"
368 mm 4-15/16" 12-1/4"
5-7/8" 4" 125 mm 311 mm
149 mm 102 mm

5-3/8"
137 mm
4040XP-18PA

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop Recommended at hold-open point, where the door cannot swing 180°, or where CUSH-N-STOP arm is not used
Reveal Should not exceed 7/32˝ (6 mm)
Top Rail Less than 5-3/8˝ (137 mm) measured from the stop requires PLATE,
4040XP-18PA. Plate requires 2˝ (51 mm) minimum from the stop
Head Frame Flush or rabetted requires PA SHOE ADAPTER, 4040XP-419
Stop Width Minimum 1˝ (25 mm). CUSH arm requires minimum 1-1/2˝ (38 mm)
Blade Stop Clearance requires 1/2˝ (13mm) BLADE STOP SPACER, 4040XP-61.
Clearance n 4040XP-62PA shoe is 4˝ (102 mm) from door face.
n EDA shoe projects 5-1/2˝ (140 mm) from door face.
n CUSH shoe projects 6˝ (152 mm) from door face
Delayed Action n Incorporates standard 4041 cylinder, without XP cylinder
n Delays closing from 120° to 70°.
n Delay time adjustable up to approximately 1 minute.
Maximum Opening n 180° opening/hold-open points with all except CUSH arms
n 110° opening/hold-open with CUSH arms
Notes:
• Optional mounting requires PA SHOE, 4040XP-62PA for regular or HOLD-OPEN arms
• Add prefix “P” to closer description (eg. P4040XP)
• P4040XP closer includes 4040XP-201 FIFTH HOLE SPACER to support PA SHOE

B40 LCN Door Control Catalog
