4040XP
Series

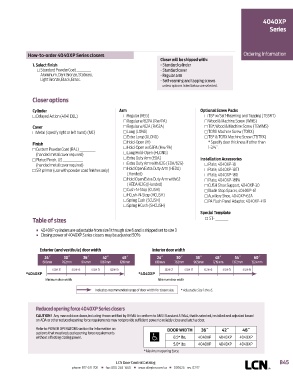

How-to-order 4040XP Series closers Ordering Information
Closer will be shipped with:
1. Select finish - Standard cylinder
Standard Powder Coat __________ - Standard cover
Aluminum, Dark Bronze, Statuary, - Regular arm
Light Bronze, Black, Brass. - Self-reaming and tapping screws
unless options listed below are selected.

Closer options

Cylinder Arm Optional Screw Packs
Delayed Action (4041 DEL) Regular (REG) TB* w/Self-Reaming and Tapping (TBSRT)
Regular w/62PA (Rw/PA) Wood & Machine Screw (WMS)
Cover Regular w/62A (R/62A) TB*, Wood & Machine Screw (TBWMS)
Metal (specify right or left hand) (MC) Long (LONG) TORX Machine Screw (TORX)
Extra Long (XLONG) TB* & TORX Machine Screw (TBTRX)
Finish Hold-Open (H) * Specify door thickness if other than
Custom Powder Coat (RAL) ___________ Hold-Open w/62PA (Hw/PA) 1-3/4˝.
(handed metal cover required) Long Hold-Open (HLONG)
Plated Finish, US ______________ Extra Duty Arm (EDA) Installation Accessories
(handed metal cover required) Extra Duty Arm with 62G (EDA/62G) Plate, 4040XP-18
SRI primer (use with powder coat finishes only) Hold Open Extra Duty Arm (HEDA) Plate, 4040XP-18TJ
(Handed) Plate, 4040XP-18G
Hold Open Extra Duty Arm with 62 Plate, 4040XP-18PA
(HEDA/62G)(Handed) CUSH Shoe Support, 4040XP-30
Cush-N-Stop (CUSH) Blade Stop Spacer, 4040XP-61
HCush-N-Stop (HCUSH) Auxiliary Shoe, 4040XP-62A
Spring Cush (SCUSH) PA Flush Panel Adapter, 4040XP-419
Spring HCush (SHCUSH)
Special Template
Table of sizes ST- _________

n 4040XP cylinders are adjustable from size 1 through size 6 and is shipped set to size 3
n Closing power of 4040XP Series closers may be adjusted 50%

Exterior (and vestibule) door width Interior door width
24˝ 30˝ 36˝ 42˝ 48˝ 24˝ 30˝ 38˝ 48˝ 54˝ 60˝
610mm 762mm 914mm 1067mm 1219mm 610mm 762mm 965mm 1219mm 1372mm 1524mm
size 3 size 4 size 5 size 6 size 2 size 3 size 4 size 5 size 6
*4040XP *4040XP
Minimum door width Minimum door width

Indicates recommended range of door width for closer size. * Adjustable Size 1 thru 6.

Reduced opening force 4040XP Series closers
CAUTION ! Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based
on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
Refer to POWER OPERATORS section for information on DOOR WIDTH 36˝ 42˝ 48˝
systems that meet reduced opening force requirements
without effecting closing power. 8.5* lbs. 4040XP 4040XP 4040XP
5.0* lbs. 4040XP 4040XP 4040XP
* Maximum opening force.

LCN Door Control Catalog B45
