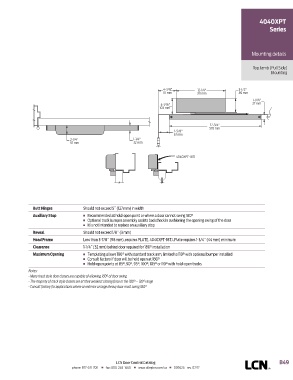

4040XPT
Series

Mounting details

Top Jamb (Pull Side)

Mounting

4-3/8" 12-1/4" 3-1/2"
111 mm 311 mm 89 mm
1-1/16"
4-1/16" 27 mm
103 mm

22-3/4"
578 mm
2-5/8"
67 mm
2-1/4" 1-1/4"
57 mm 32 mm

4040XPT-18TJ

Butt Hinges Should not exceed 5˝ (127 mm) in width
Auxiliary Stop n Recommended at hold-open point or where a door cannot swing 180°
n Optional track bumper assembly assists backcheck in cushioning the opening swing of the door
n It is not intended to replace an auxiliary stop
Reveal Should not exceed 1/8˝ (3 mm)
Head Frame Less than 3-7/8˝ (98 mm), requires PLATE, 4040XPT-18TJ. Plate requires 1-3/4˝ (44 mm) minimum
Clearance 1-1/4˝ (32 mm) behind door required for 180° installation
Maximum Opening n Templating allows 180° with standard track arm, limited to 110° with optional bumper installed
n Consult factory if door will be held open at 180°
n Hold-open points at 85°, 90°, 95°, 100°, 105° or 110° with hold-open tracks
Notes:
• Many track style door closers are capable of allowing 180° of door swing
• The majority of track style closers are at their weakest closing force in the 180° – 130° range
• Consult factory for applications where an exterior or large/heavy door must swing 180°

LCN Door Control Catalog B49
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 07/17
